Baobab Powder Processing Manufacturing Plant Applicable Industries Linear Vibrating Screen
Introduction
Baobab Powder Processing Manufacturing Plant Applicable Industries Linear Vibrating Screen is a high precision fine powder screening machine.The fundamental principle of vibrating screen sifter is that the unbalanced weight dropper installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.
Specification-Baobab Powder Processing Manufacturing Plant Applicable Industries Linear Vibrating Screen
| Model | Size of screen surface | Number of layers of screen | Mesh size | Capacity | Number of vibration | Double amplitude | Motor power |
| DZSF520 | 500*2000 | 1-6 | 2-200 mesh | 0.03-5 | 960-1450 | 4-8 | 2×0.4 |
| DZSF525 | 500×2500 | 1-6 | 0.06-15 | 960-1450 | 2×0.4/0.75 |
| DZSF1020 | 1000×2000 | 1-6 | 0.07-20 | 960 | 2×0.75/1.5 |
| DZSF1025 | 1000×2500 | 1-6 | 0.07-15 | 960-1450 | 2×0.4/0.75 |
| DZSF830 | 800×3000 | 1-6 | 0.07-15 | 960 | 2×0.75 |
| DZSF1030 | 1000×3000 | 1-6 | 0.1-20 | 960 | 2×0.75/1.5 |
| DZSF1224 | 1200×2400 | 1-6 | 0.1-23 | 960 | 2×0.4/0.75 |
Application
Baobab Powder Processing Manufacturing Plant Applicable Industries Linear Vibrating Screen can be applied to the screening and grading of powder and granular materials. It is widely used in plastics, rubber, ceramic, food, pharmaceutical, chemical, carbon, fertilizer, glass industries and so on.
1. Function
Screening & grading of dry powder, fine powder.
2. Other functions
Also apply to food, plastics, pharmaceuticals, metallurgy, glass, building materials, food, fertilizers, abrasives, ceramics and other industries, suitable for the dry powder or granular material screening
Feature-Baobab Powder Processing Manufacturing Plant Applicable Industries Linear Vibrating Screen
1. Low energy consumption, high efficiency,
2. Simple structure, easy to maintenance
3. Full closed structure, no dust flying
4. Sieving accuracy reach to 400 mesh, 6 layers
Working principle
Baobab Powder Processing Manufacturing Plant Applicable Industries Linear Vibrating Screen adopt twin vibrating exciters driving, when the two exciters rotated synchronously or reversed, the exciting force from the eccentric blocks will cancel each other on the direction of parallel to the motor axis, but stacking into a force on the direction of perpendicular to motor shaft, so the materials’ movement is one straight line. There is one inclination between the axial direction of two motors and screening surface, under the action of exciting force and the gravity force of the material, the materials are thrown up on the screen of Rectangular separator, jumps and moves forward in a straight line, achieving the sieving and classification purpose.
Product Tags:
|
|

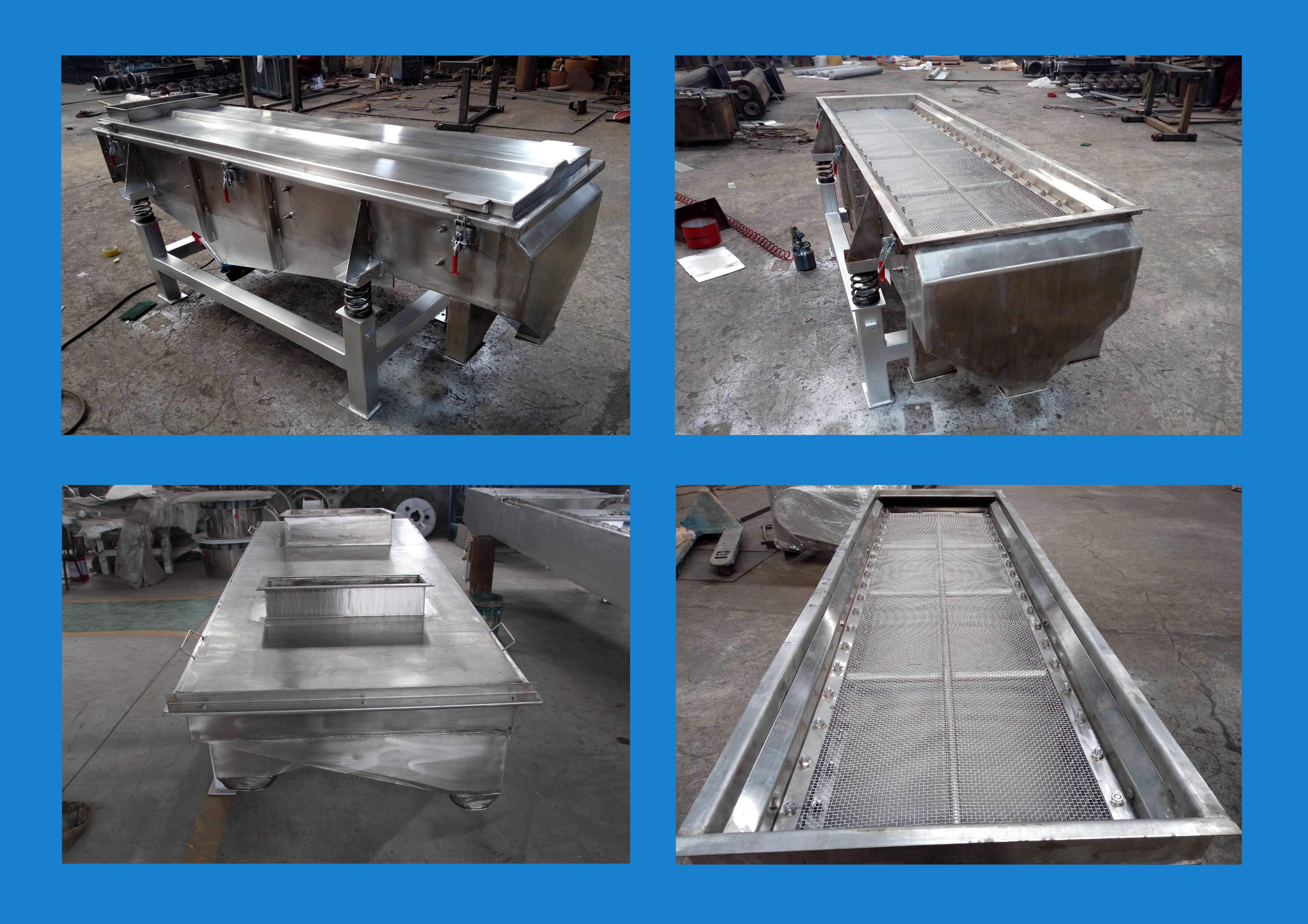

Linear Vibratory Screening Equipment For Baobab Powder Processing Manufacturing Plant Images
|
