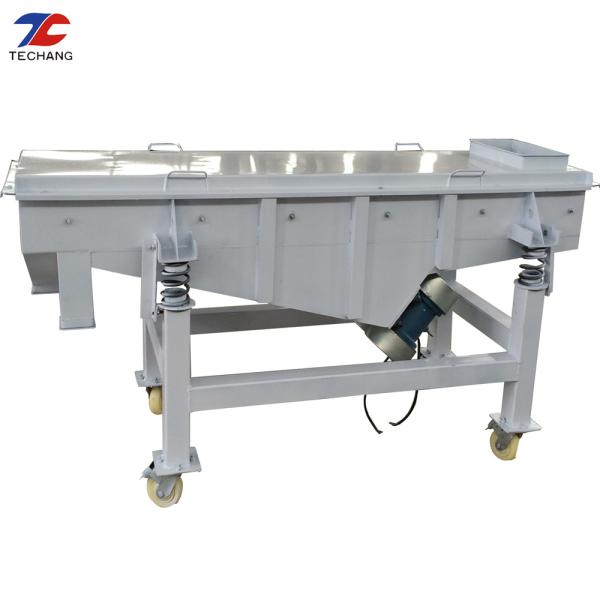

Good Performance Linear Vibrating Screen For Mining Industry
Introduction
Good Performance Linear Vibrating Screen For Mining Industry is a standard and universal screening equipment.
The movement track of its screen box is close to straight line. Almost all the linear vibrating machine are consisted of the screen box, supporting or hanging device, driving unit, vibration isolation etc.
Working principle
Good Performance Linear Vibrating Screen For Mining Industry use vibration motor as vibration source, the materials are rose and moved in the straight at the same time. The material are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different outlet.
Features-Good Performance Linear Vibrating Screen For Mining Industry
1. Low energy consumption, high efficiency,
2. Simple structure, easy to maintenance
3. Full closed structure, no dust flying
4. Sieving accuracy reach to 400 mesh, 6 layers
Application
Good Performance Linear Vibrating Screen For Mining Industry can be applied to the screening and grading of powder and granular materials. It is widely used in plastics, rubber, ceramic, food, pharmaceutical, chemical, carbon, fertilizer, glass industries and so on.
Technical data-Good Performance Linear Vibrating Screen For Mining Industry
| Model | Size of screen surface | Number of layers of screen | Mesh size | Number of vibration | amplitude | Motor power |
| DZSF520 | 500*2000 | 1-6 | 2-400 mesh | 960r/min | 4-8 | 2×0.4 |
| DZSF825 | 800×2500 | 1-6 | 2×(0.4-0.75) |
| DZSF1020 | 1000×2000 | 1-6 | 2×(0.75-1.5) |
| DZSF1030 | 1000×3000 | 1-6 | 2×(0.75-1.5) |
| DZSF1230 | 1200×3000 | 1-6 | 2×(0.75-3) |
| DZSF1530 | 1500×3000 | 1-6 | 2×(0.75-3) |
| DZSF1540 | 1500×4000 | 1-6 | 2×(0.75-3) |
