Stainless Steel Inclined Screw Conveyor For Flour/Coffee/Powder
Stainless Steel Inclined Screw Conveyor For Flour/Coffee/Powder is the main unit for mechanical transport operation of industry and agriculture, which uses motor to drive screw rotation and move material to achieve conveying purpose. Stainless Steel Inclined Screw Conveyor For Flour/Coffee/Powder is suitable for all industries such as building material, chemical industry, power industry, metallurgy, coal industry and grain industry, for horizontal or tilted transportation for powdery, granular and small lump materials, such as coal, dust, residue, cement and grain which their temperature is less than 200℃.
The screw diameter range of Stainless Steel Inclined Screw Conveyor For Flour/Coffee/Powder is 108 to 600mm. The maximum conveying length can be 70 meters.
| Model | Diameter
(mm) | Screw Rotation Speed
(r/min) | Inclination Angle
(degree) | Conveyor Length
(m) |
| GX165 | 165 | 20,30,35,45,60,75,90,120,150,190,207,290 | <90 | 3~30 |
| GX219 | 219 |
| GX273 | 273 |
| GX325 | 325 |

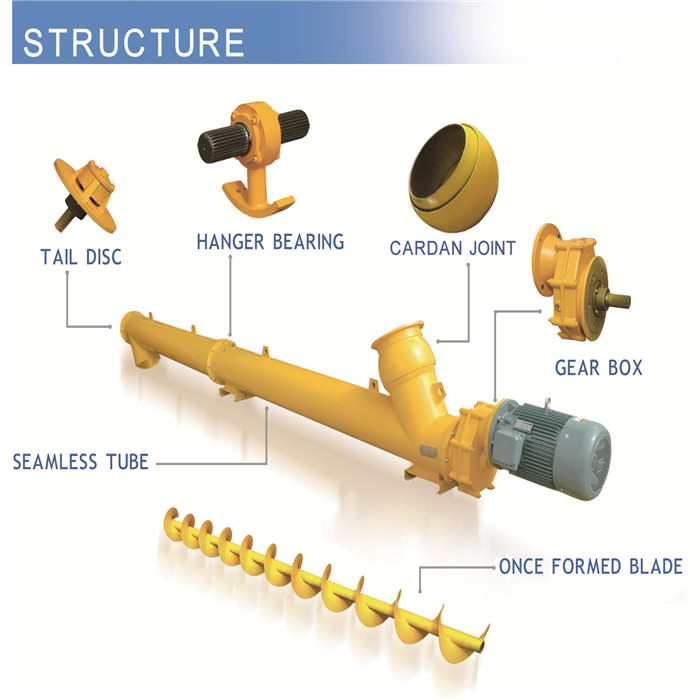

Stainless Steel Inclined Screw Conveyor For Flour/Coffee/Powder consists of motor reducer, coupler, inlet, screw blade, bracket, lifting shackle, the end bearing, outlet, and so on.
Stainless Steel Inclined Screw Conveyor For Flour/Coffee/Powder is widely used in building materials, metallurgy, chemical, electric power, coal, machinery, light industry, grain and food industry, suitable for conveying powder, granular, small pieces of materials, such as cement, coal, grain, chemical fertilizer, ash, sand, coke, etc. should not be easily perishable, viscous, easy to agglomerate the material. Commonly seen in the food industry, these conveyors transport ingredients to and from mixers, ovens and vats and need to be sterile at all times. Therefore, they are commonly made of stainless steel, a smooth food grade metal that is less likely to contaminate edible ingredients than other materials and is easily cleaned.
Features
1. Simple structure, easy operation and excellent sealing performance.
2. Small section of whole machine, being suitable for horizontal or tilted transportation.
3. Charging and Discharging can be conducted at more than one points in the middle.
Packaging & Shipping
Stainless Steel Inclined Screw Conveyor For Flour/Coffee/Powder is packed by wooden case or according to the customer's requested.
