Lime Particle 2 Deck Linear Separating Linear Vibrating Screen

Product Categories
Xinxiang Techang Vibration Machinery Co.,Ltd.
Contact Now

Lime Particle 2 Deck Linear Separating Linear Vibrating Screen

  • 1
  • 2

Brand Name : TECHANG

Model Number : TCDZSF

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiatable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50 sets per month

Delivery Time : 20~30 working days

Packaging Details : Wooden case

Name : Lime Particle 2 Deck Linear Separating Linear Vibrating Screen

Application : Lime Particle

Capacity : 50 KG~100 T/H

Frequency : 960 t/min

Angle of oscillation : 45~60 degree

Layer(s) : 2 layers

Amplitude : 6-8 mm

Customized : Acceptable

Contact Now

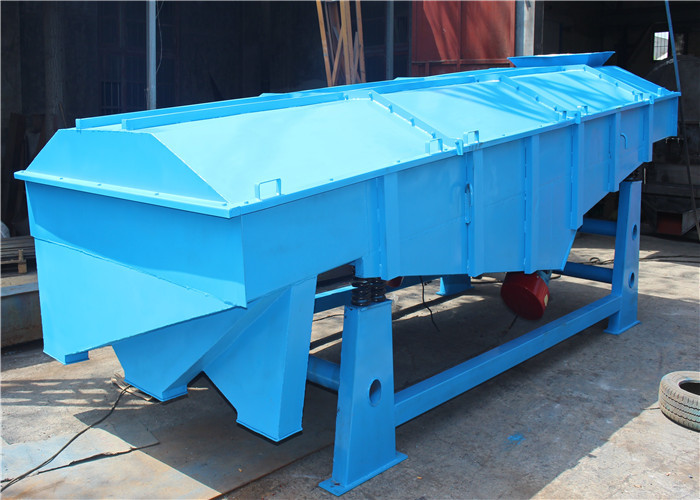

Lime Particle 2 Deck Linear Separating Linear Vibrating Screen

Introduction

Lime Particle 2 Deck Linear Separating Linear Vibrating Screen is a kind of closed and light weight vibrating sieve equipment, it uses a vibration motor as the vibration source, which make the material jump in straight line on the screen surface, material evenly go into the feed port of linear vibrating screen from the feeding machine, generating multiple materials through the multilayer Lime Particle 2 Deck Linear Separating Linear Vibrating Screen, and be discharged from each outlets.

Lime Particle 2 Deck Linear Separating Linear Vibrating Screen

Features

1. Low consumption with high yield and low cost.
2. Fully enclosed structure, automatic layout, more suitable for pipeline operations.
3. Good sealing without dust flying.
4. Can be used for single or multi layer.
5. Material auto discharge, be able to continuous operation.
6. Every part of the screen box used copper plate and section welded together.

Technical data

The below table shows the detailed data of different models of Lime Particle 2 Deck Linear Separating Linear Vibrating Screen for your reference. And we will choose a suitable model according to your materials and application.

Model Size of screen surface Number of layers of screen Mesh size Number of vibration amplitude Motor power
DZSF520 500*2000 1-6 2-400 mesh 960r/min 4-8 2×0.4
DZSF825 800×2500 1-6 2×(0.4-0.75)
DZSF1020 1000×2000 1-6 2×(0.75-1.5)
DZSF1030 1000×3000 1-6 2×(0.75-1.5)
DZSF1230 1200×3000 1-6 2×(0.75-3)
DZSF1530 1500×3000 1-6 2×(0.75-3)
DZSF1540 1500×4000 1-6 2×(0.75-3)
